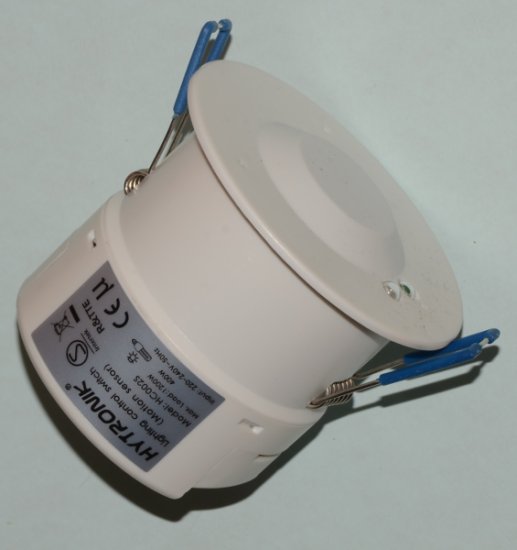

Hytronik HC002s Occupancy Sensor

A flush mounting occupancy sensor using microwave control to detect the movement of people in a space.
Allows the daylight threshold to be set and additionally the hold time from 5 seconds to 30 minutes.
Each Hytronik sensor has the important and practical feature, "Zero-cross relay operation", which was designed in the software, which means the sensors can switch on/off the load right on the zero-cross point to ensure the min. current passing through the relay contact point. This maximises the life span of the LEDs switched and the sensor itself. Low quality PIRs and sensors will cause LEDs to fail.
Adjustable detection range up to 12m.
Maximum switched power 1200w resistive and 400w capacitive.
Diameter 80mm and height 76mm with a hole size approximately 70mm.
When used with the Hytronik SensorDim HE1025 LED driver then these sensors can be used to control lights which are always on at a prescribed level between 10 and 30% and then go to full brightness when movement is detected. This set up can be used with the SLB COB10 ceiling lights or other lights.
