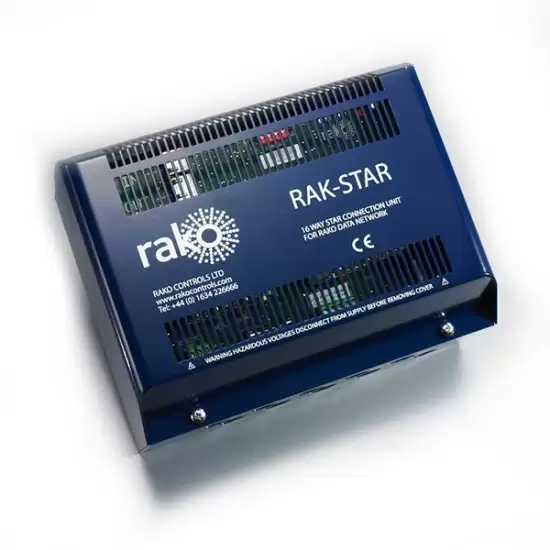

Rako RAK Distribution Unit- RAK-STAR

The network is wired in a star, radial or home-run configuration. The module also allows each ‘leg’ to be isolated, making cabling fault identification easier. The unit is fed from the RAK-LINK units via either the RJ11 sockets or the CAT5 network and no additional power supply is required. The connection for the CAT5 is via 18 pairs of 4-way Krone punch down terminals. This allows connection of the incoming and outgoing ‘daisy-chain’ network plus 16-star connections. Typically these would be used for wired control panels WCMs. Each star connection of the module can have up to 19 Rako devices connected with the common 15v power at the start of each leg and an isolation jumper for the 15V power to each leg. The module programming can be done using RASOFT Software suite and two RJ11 programming sockets within the unit allow it.
The use of a RAK star means that control panels can be star wired as opposed to daisy chained and also makes any diagnosis easier.
