24v LED Tape 14.4w/m IP20 RGB

A 5m length of the highest commercial grade 14.4 watts per metre, 24v RGB (red, green, blue) LED Strip with self adhesive backing for easy installation.
The strip has a very low light depreciation of just 3% after 30000 hours.
This tape is the highest quality commercial grade made to exacting manufacturing standards as detailed below:-

• Specialise LED binning system to ensure that customers receive high consistency in the LED light colours
• 99.99% gilded wires to improve the stability and longevity of the LEDs.
• Utilises phosphors with rare earth aluminates for minimal colour shift.

The light output details are most impressive as below. This may seem complex but please note with RGB strip you cannot simply specify a lumens output value:-

• Color Temperature Red: 620-630nm, 500mcd
• Green: 520-530nm, 950mcd
• Blue: 465-475nm, 220mcd

This product is available in standard lumens or with Epistar high lumens output LEDs.
24 volt tape is beneficial over 12 volt tape because it uses just half the current. This means that longer lengths can be used without loss of light level (lumens depreciation) and controllers can drive double the length of 12 volt tape.
The tape backing colour is white to give an unobtrusive appearance.

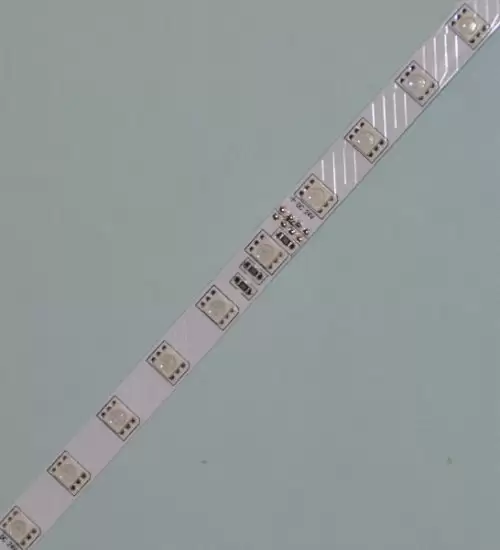

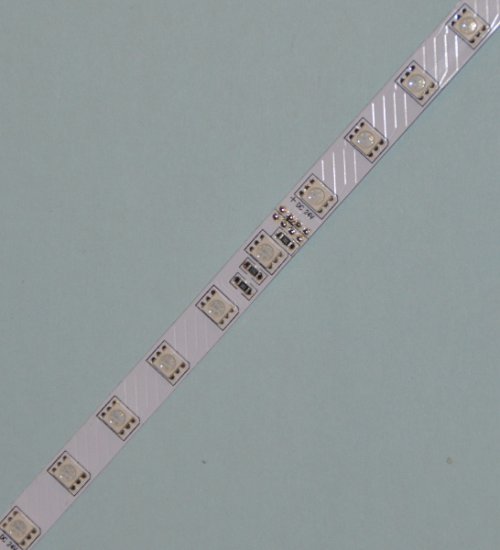

The tape has 60 individual SMD 5050 LEDs per metre and is 10mm wide.
The tape is suitable for dry areas and carries an IP20 rating.
This RGB tape can be controlled by a standalone RGB Tape Controller and a 24v power supply. Alternatively it can be controlled through a master DMX controller or lighting automation system which has a DMX output then using a DMX Decoder in conjunction with a 24 volt power supply .In this configuration the 24v driver should be of a larger wattage rating than the tape being driven. Here are some compatible 24v drivers.
The tape is supplied in a 5m roll and can be cut to the desired length along the prescribed cut marks. Connectors are then available from the accessories section to wire up the cut lengths.
If you need shorter lengths or have any questions please call.
Any questions on the LED Tape or how to wire up please ask.
