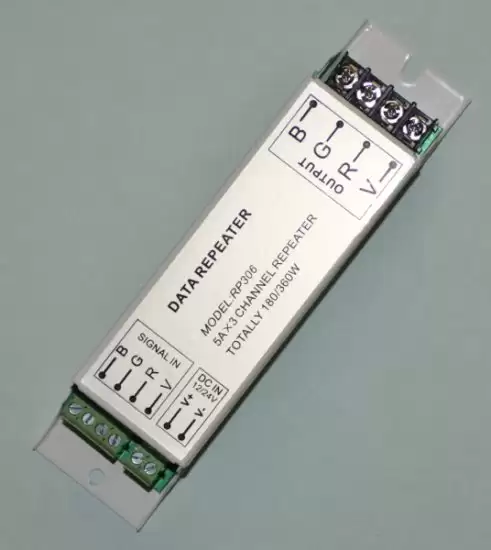

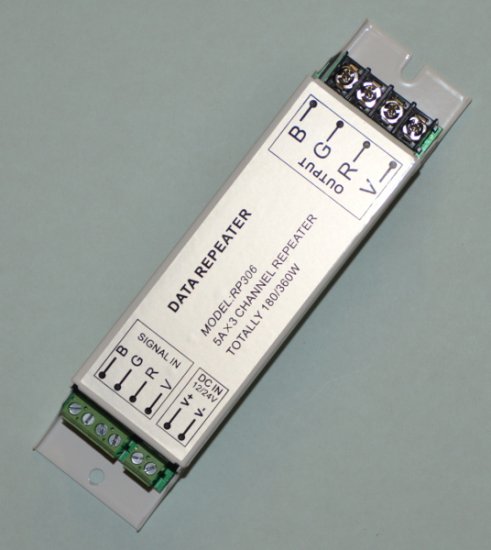

RGB Data Repeater 3 Channel RP306

Technical Specifications:

Power Consumption = 180 Watts with 12v / 360 Watts with 24v Operation
Number of Channels = 3
Operating Voltage = 12v and 24v
Output Current = 5 Amps/Channel
Supports = 25 meters of 14.4W/m LED Tape or 50 meters of 7.2W/m tape
LED Strips Supported = Dimmable Single Colour LED Strips/ LED RGB Tape
Dimensions = 165mm long x 40 mm wide and 33mm high

General Product Description:

A 3 channel data repeater ideally suited for linking separate lengths of LED RGB Tape with a single signal input. This means that it is only necessary to control the first length of LED tape and the RGB repeated can be used to ensure that the other lengths are operated in a sychronised fashion.
12 or 24 volt operation with 5 amps per channel output equating to 180 watts for 12 volt operation of 360 watts for 24 volt operation. This means that this RGB repeater can be used to drive up to 25 meters of 14.4W/m LED tape or 50 meters of 7.2W/m tape. If 7.2W/m tape is used the lengths can be doubled. Each repeated requires a separate power supply.
This unit can also be used for dimmable single colour Led strip. In this case it is necessary to link together the Red, Green and Blue connections to the negative lead on the strip and the +ve connection is connected to the positive. In this configuration the repeater will power the full 180 watts for single colour strip with 12 volts or 360 watts with 240 volts .
The unit size is 165mm long x 40 mm wide and 33mm high.
