1.8w LED Cabinet Light and

IR Door Sensor Kits

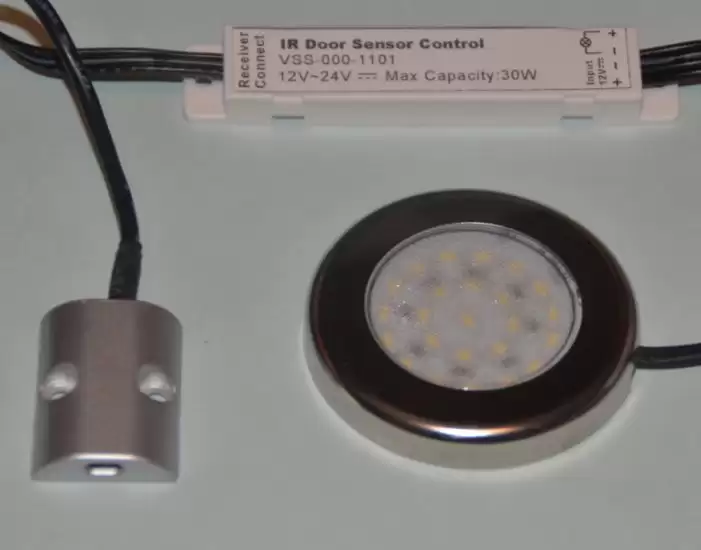

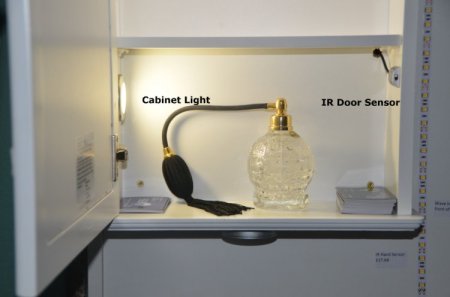

LED Cabinet light and IR Door Sensor plug and play kits.
The cabinet lights are thin 1.8 watt and they are 55mm diameter surface mounted attached using the screws or double sided tape pad provided.
The door sensor uses infra-red for operation and if therefore silent and contact-less. The sensor can either be the surface mount type as in the main picture or the recessed version as shown in the last additional images.

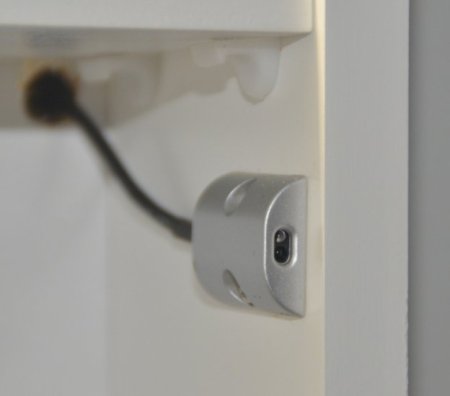

• The surface mount version has a very tidy appearance and is just 20x23x8mm which is positioned inside the cabinet just behind the door.
• The recessed sensor is 15mm diameter and fits into a 10mm diameter hole.

The sensor has a control unit which is just 86x16x9mm and can be mounted up to 2m from the sensor using the lead supplied.

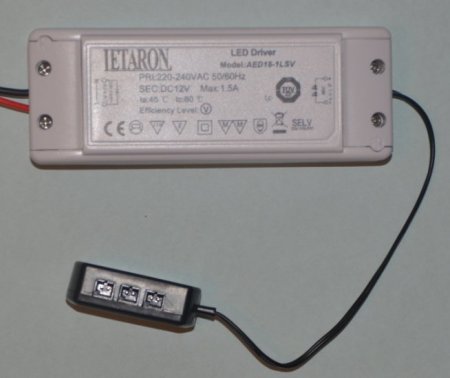

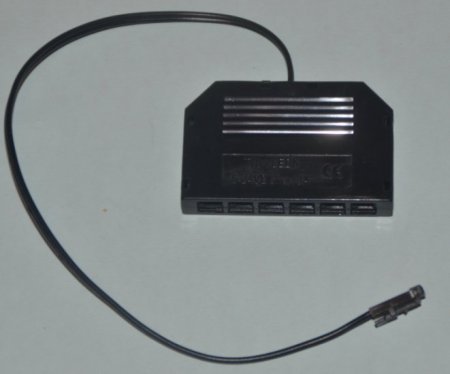

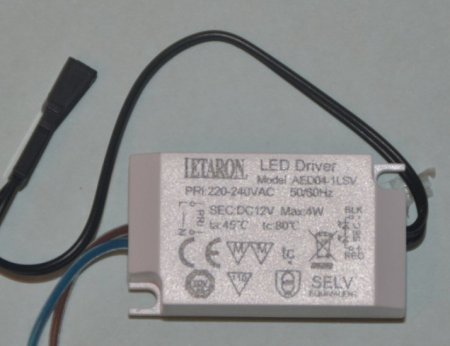

Each kit is supplied with a single IR door sensor, the number of lights selected and the 12v LED drivers needed for use. If 1 or 2 lights are selected then individual drivers are supplied and for 3 or more a 6 way driver is used.
These kits are genuine plug and play and all the components simply plug together and the only wiring connection necessary is to connect the drivers to a 220-240v AC mains supply.
Both the cabinet lights and IR door sensor come with long 2m leads to allow fitting away from the driver locations.
The complete range of parts are shown in the main and addition images and the appropriate ones for your kit will be supplied with the order.
The lights are either warm white 3000k or 4000k natural white light colour which can be selected from the dropdown.
