3w LED Cabinet Light and

IR Door Sensor Kits

Plug and play LED Cabinet light and IR Door Sensor Kit.

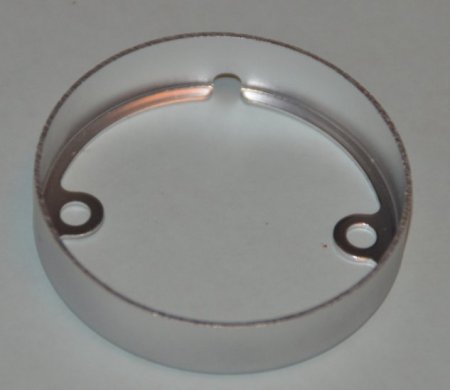

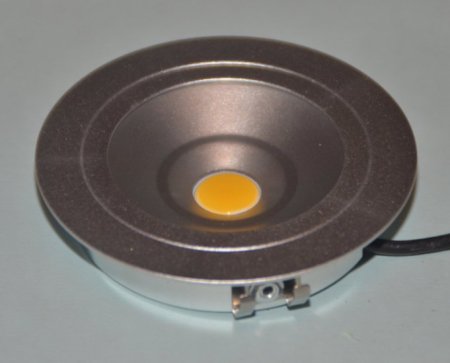

The cabinet lights are ultra bright 3 watt which are 65mm diameter and can recessed or surface mounted with the provided base plate. To recess mount simply slit into a 58mm hole.

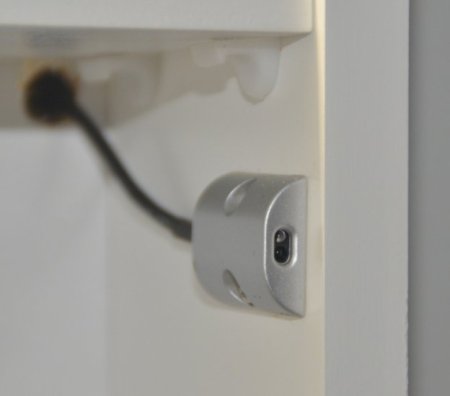

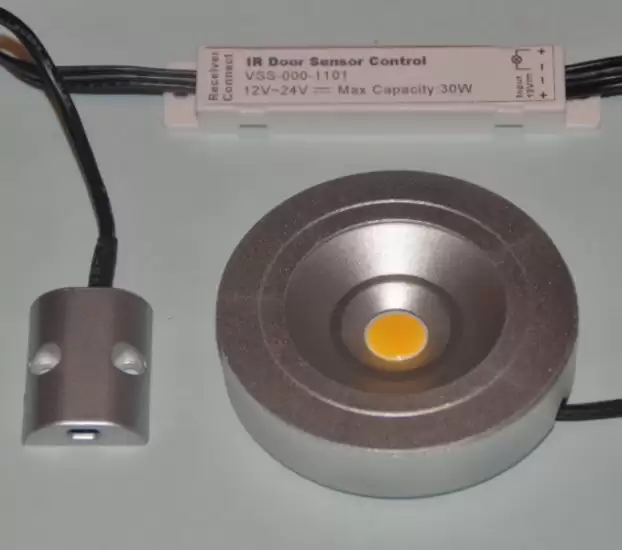

The sensor can either be selected as the surface mount sensor as shown in the main image or the recessed sensor as shown in the last additional image.

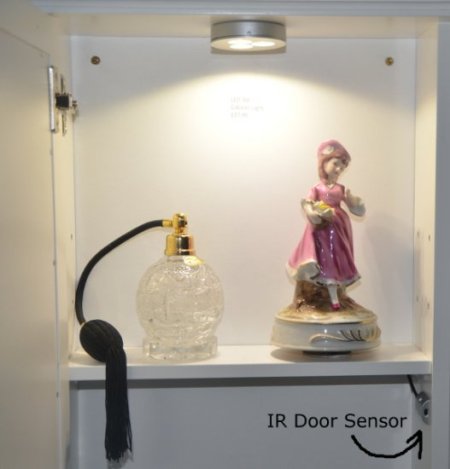

• The surface mount IR(infra red) door sensor has a contact less operation and uses a very neat sensor just 20x23x8mm which is place in the cabinet just behind the door.

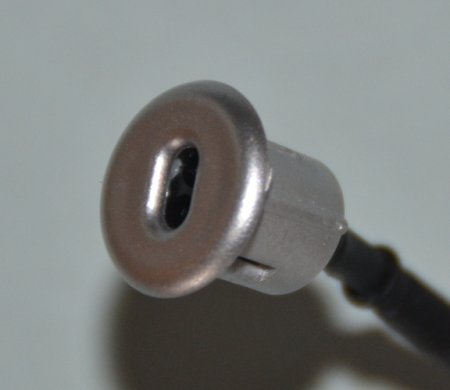

• The recessed sensor fits into a 10mm diameter hole and has a diameter or 15mm.

It also includes a control unit which is just 86x16x9mm and can be mounted up to 2m from the sensor using the provided lead.

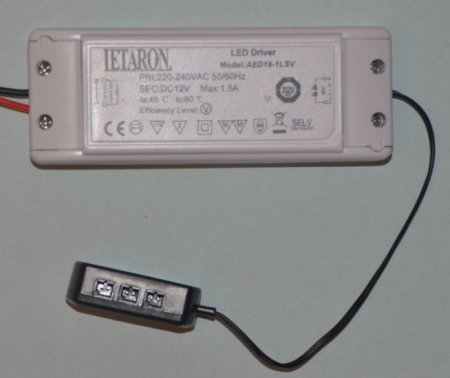

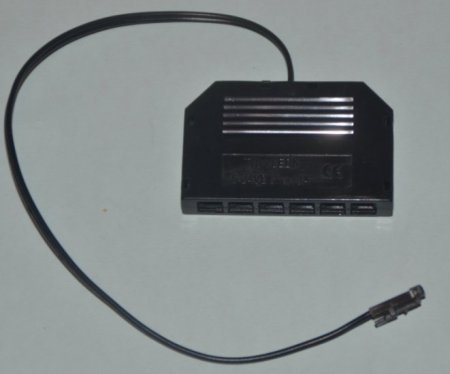

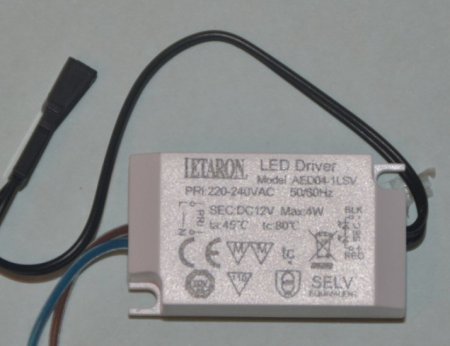

Each kit is supplied with one IR door sensor, the number of lights selected and the necessary 12v LED drivers. For 1 or 2 lights then individual drivers are supplied and for 3 or more a 6 way driver is provided.
These kits are truly plug and play and all the components simply plug together and all you need to do is to wire the drivers to a 220-240v AC mains supply.
Both the cabinet lights and IR door sensor are provided with long 2m leads to provide flexibility in fitting.
The complete range of parts are shown in the main and addition images and the appropriate ones for your kit will be supplied with the order.
The lights are available either in warm white 3000k or 4000k natural white light colour.
