3w LED Cabinet Light and

IR Hand Wave sensor Kits

Plug and play LED under cabinet and display lights and IR hand wave kits

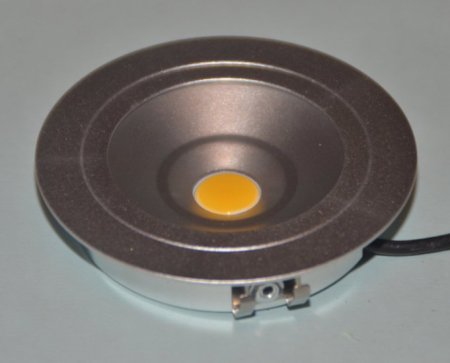

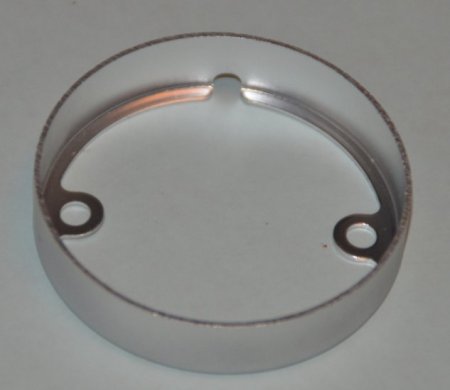

Supplied with very bright 3w 12volt cabinet lights with a diameter of 65mm which can recessed or surface mounted using the supplied base plate. To recess mount drop though a 58mm hole.

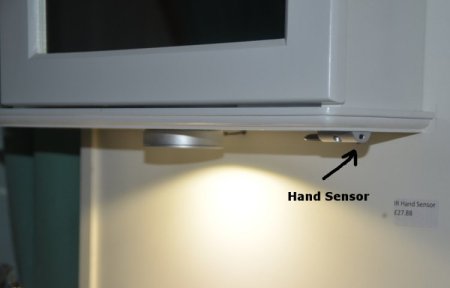

Simply wave your hand within 80mm of the sensor to turn on the lights.

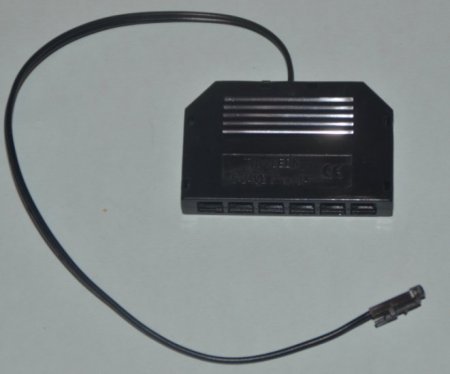

The sensor is just 20x23x8mm which can be placed at any convenient location and the control unit which is just 86x16x9mm and can be mounted up to 2m from the sensor using the provided lead.

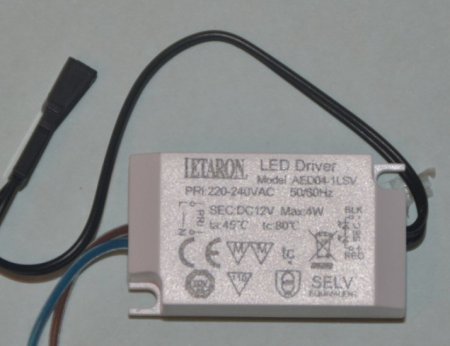

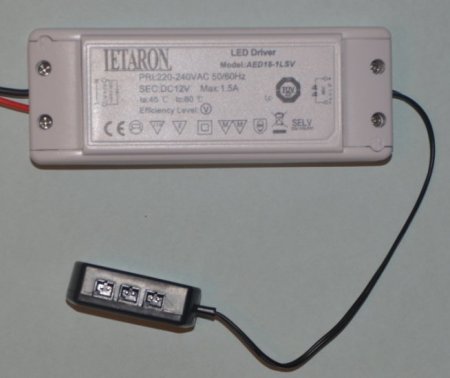

Each kit is supplied with one IR "hand wave" sensor, the number or lights selected and the necessary 12v LED drivers. If 1 or 2 lights are ordered then individual drivers are supplied and for 3-6 lights a single larger driver is provided.

All the necessary parts are supplied so these kits are very simple to install and all the wiring which is needed is to connect the drivers to a 220-240v AC mains supply.

Both the cabinet lights and IR hand wave sensors are supplied with long 2m thin gauge leads for ease of fitting.

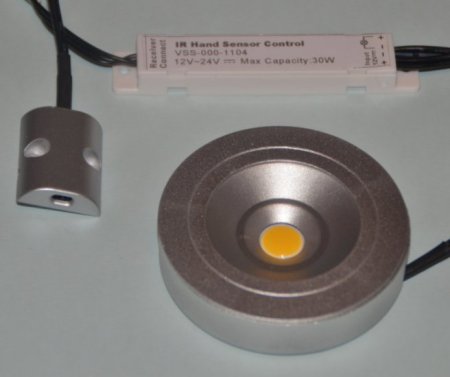

The main and additional images illustrate the complete range of parts and the correct ones will be supplied dependent on how many lights are ordered.

The light can be ordered either in a warm white light colour 3000k or 4000k natural white.
