IR Door Sensor- Surface Mount

A contact-less door sensor used to turn on LED lights.
Requires 12-24 volt LED driver to power. Here is a 10w compatible LED driver but higher power drivers can be used to switch up to 30 watts if required. This sensor uses an IR beam which detect when the door is opened and switches the 12-24volt DC supply voltage on to illuminate the LED.

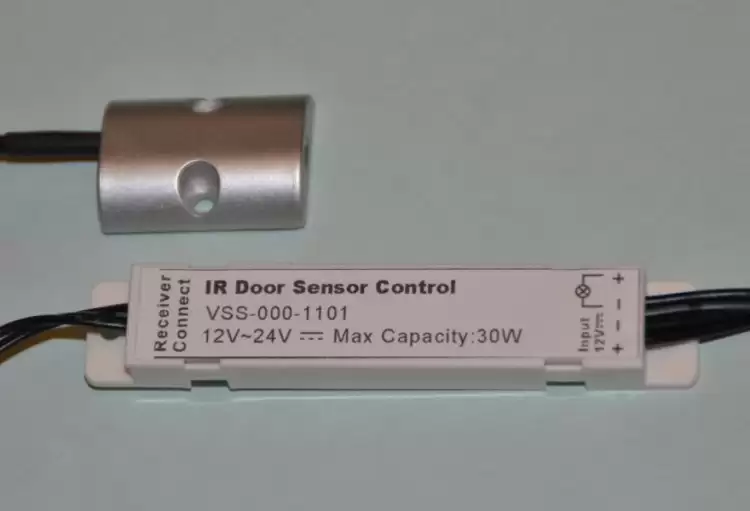

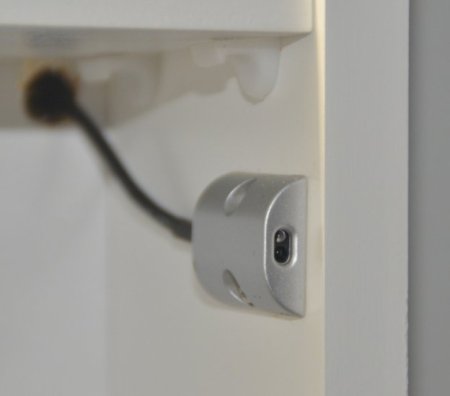

Compact design matt aluminium surface mount sensor measuring just 20mm long x23mm wide x8mm deep which is attached to the cabinet side by the door. A 2metre mini 2 core flex is supplied connected to the sensor control unit which is just 86x16x9mm in size.
Where a 12volt or 24 volt constant voltage light is used the same driver can be used for driving the sensor and light. Where constant current LED lights are being switched then a 12v DC driver can be used to driver 1 or more sensors and a 12volt DC relay can be used to switch the constant current driver for the LED light. Here are 2 suitable relays miniature relay and relay and base.
